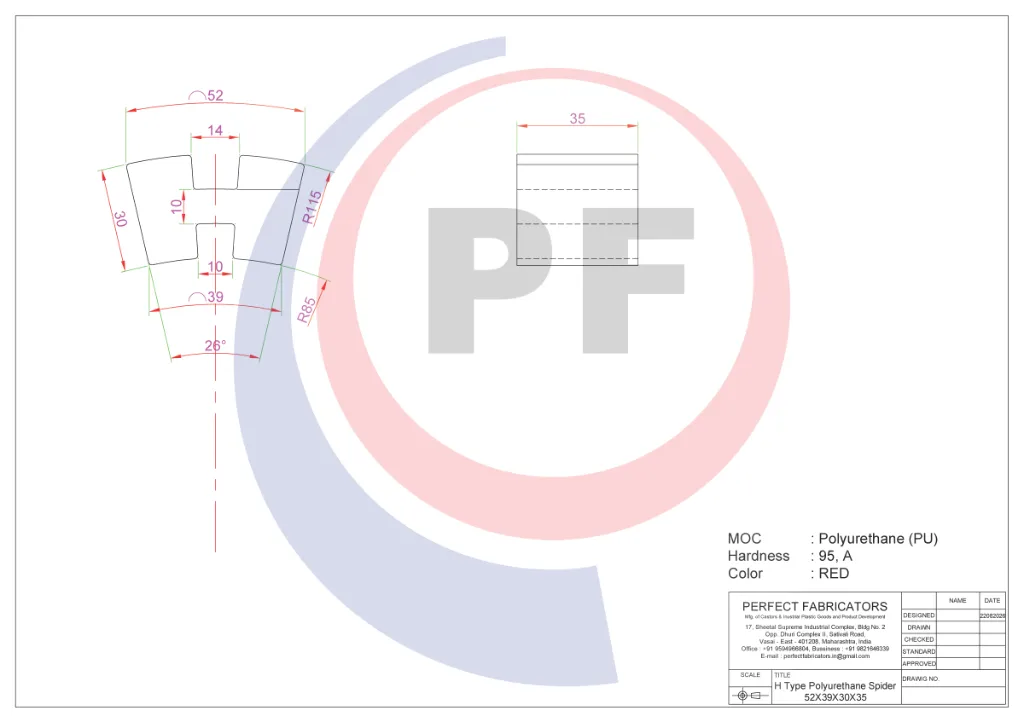

Technical Specification
01. Series : H
02. Model : 52X39X30X35 H Type
03. ARC Length A : 52mm
04. ARC Length B : 39mm
05. Top Distance TD : 14mm
06. Bottom Distance BD : 10mm
07. Angle : 26mm
08. Brigde Distance B: 10mm
09. Aligned Distance AD : 30mm
10. Radius R1 : 115mm
11. Radius R2 : 85mm
12. Length L : 35mm
13. Material : Cast Polyurethane
14. Hardness : 95, A
15. Color : Red
