Technical Specification
01. Wheel Size : 200 X 50
02. Insert : Aluminium
03. Coating : Polyurethane
04. Coating Hardness : 95, A
05. Coating Color : RED
06. Wheel OD : 200mm
07. Wheel Width : 50mm
08. Bore Size : As Per required
09. Bearing Size : As Per Required
10. Key-Way Size : As Per Required
11. Color : Sliver / Red
12. Load Capacity : 500Kg / Per Wheel

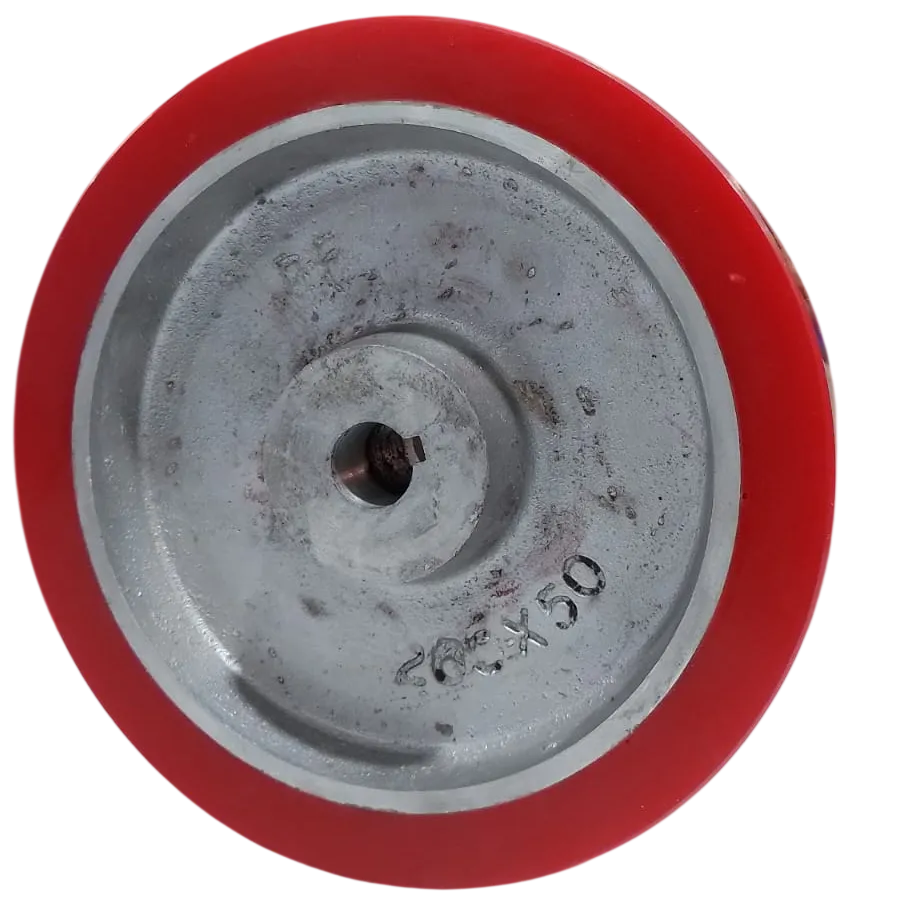

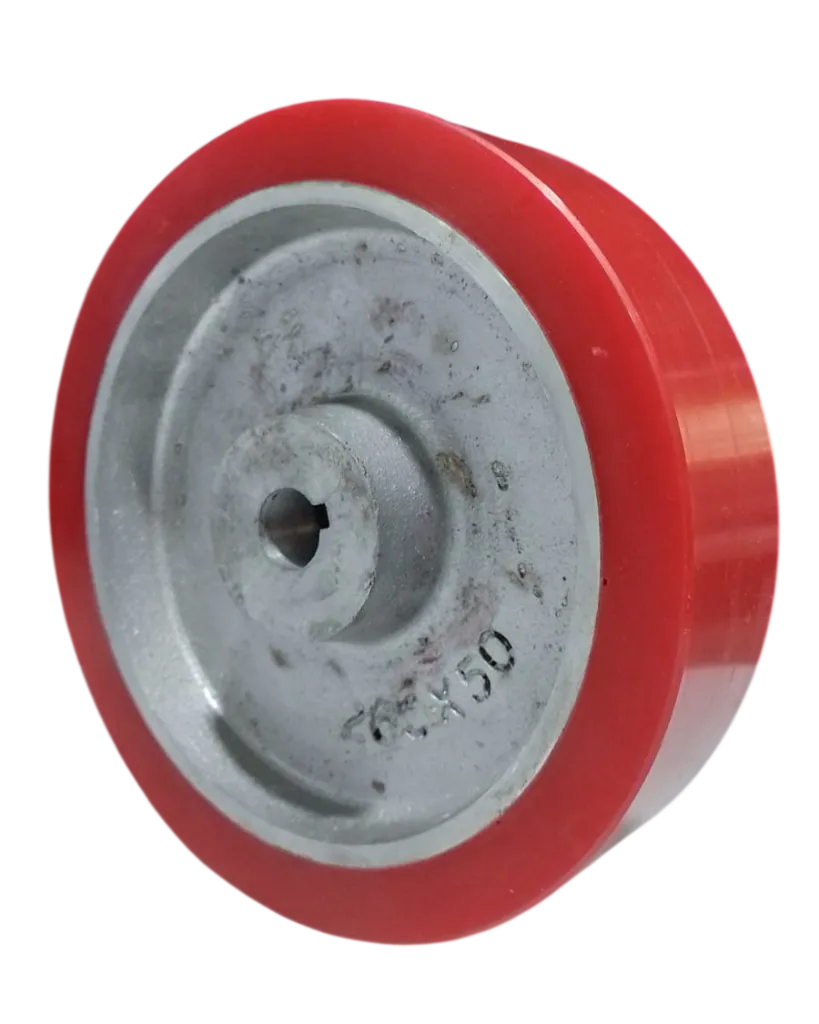

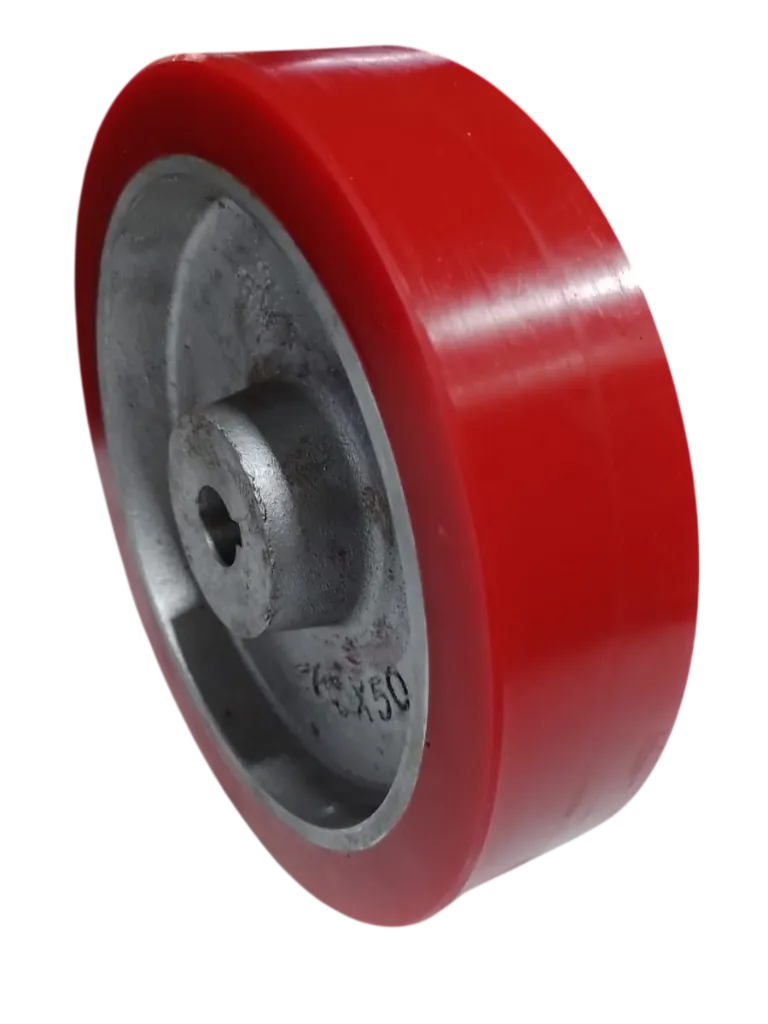

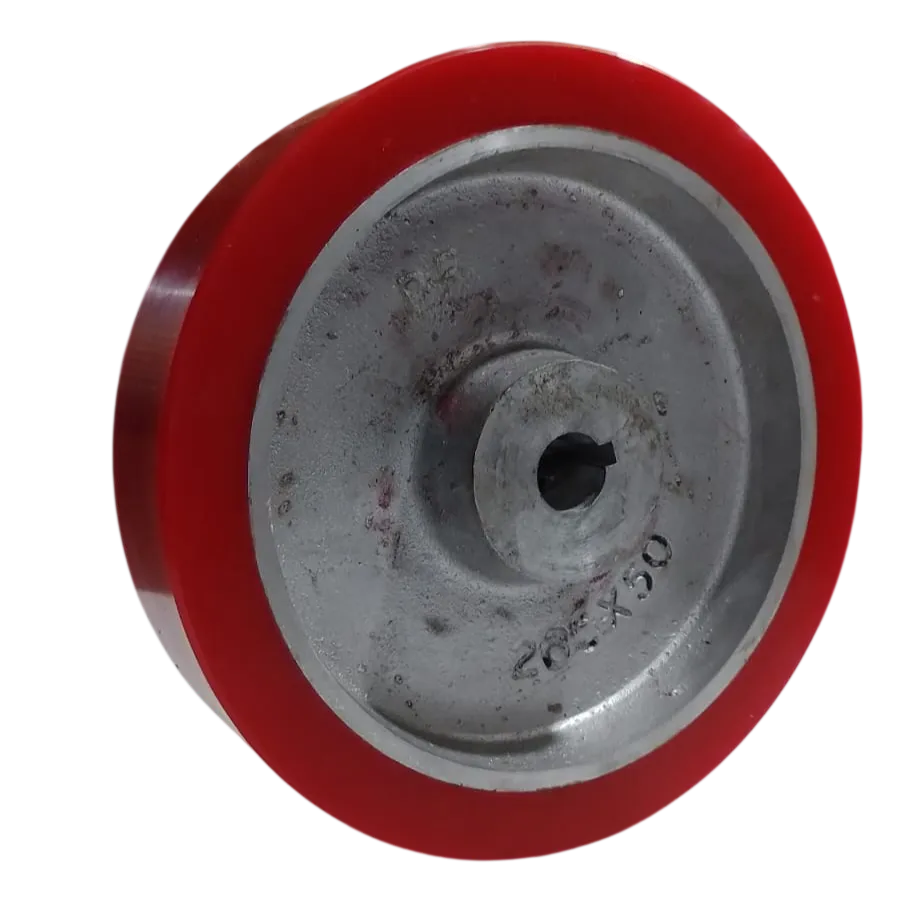

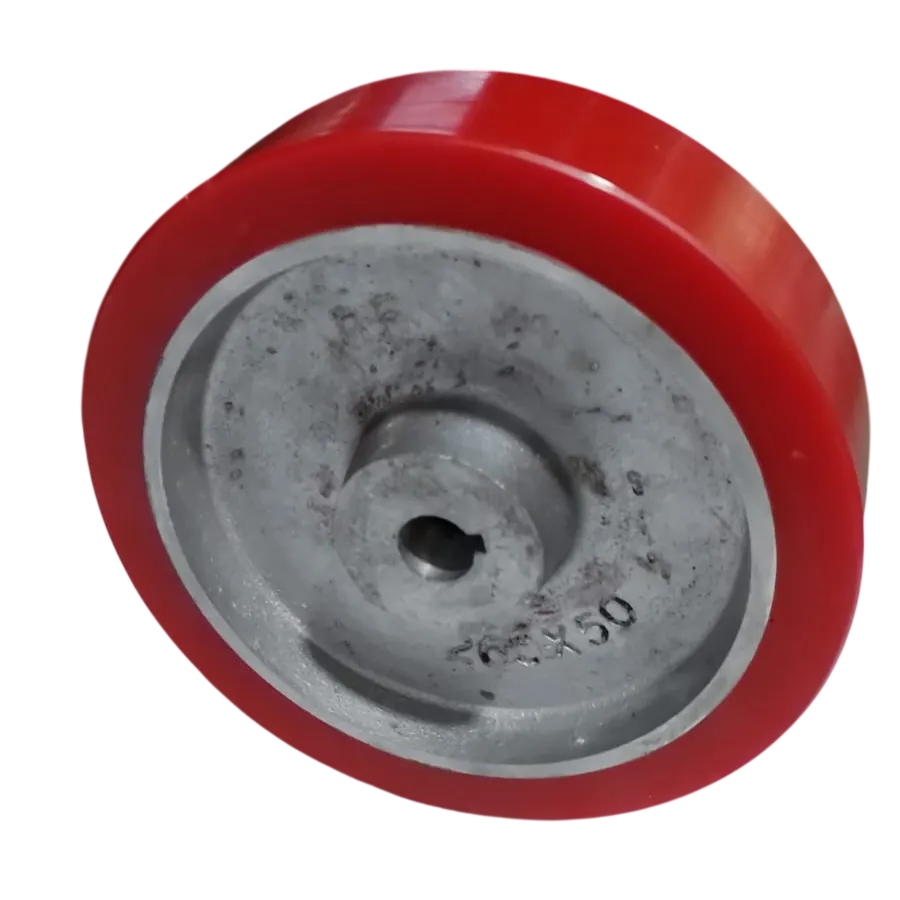

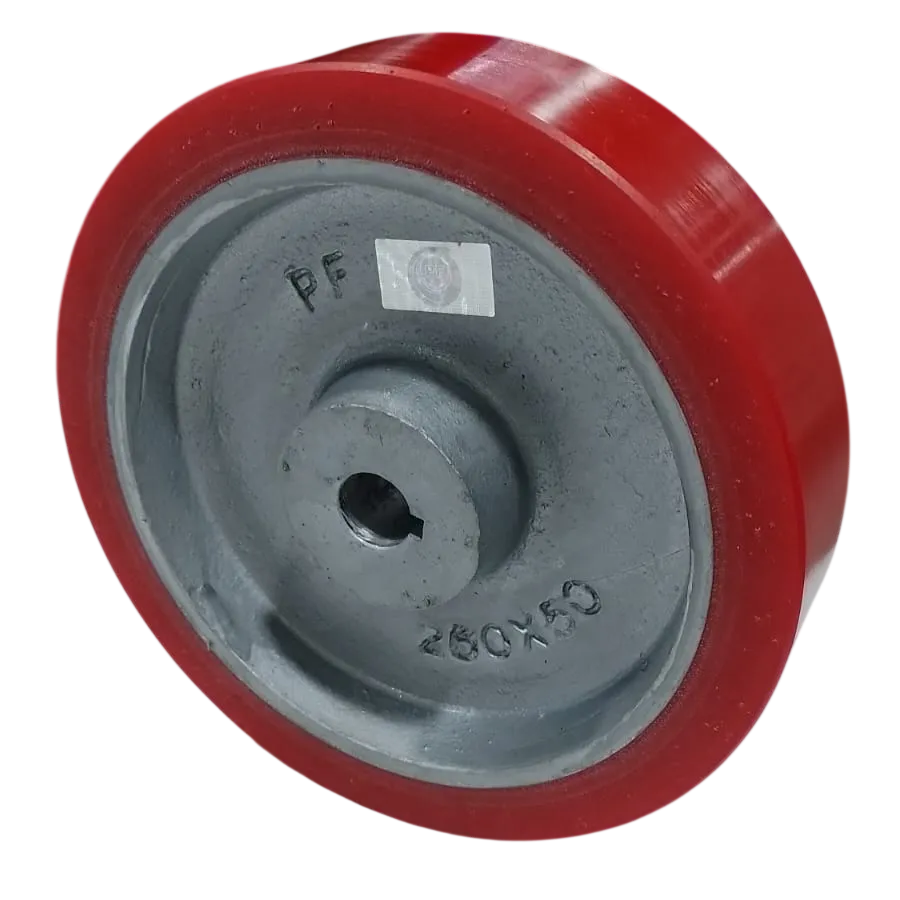

Engineered for demanding industrial applications, our Heavy-Duty PU/AL Wheel 200×50 combines a precision-machined aluminium core with high-performance red polyurethane coating (95 Shore A) to deliver exceptional load capacity, smooth rolling performance, and long service life.
Designed to handle loads up to 500 kg per wheel, this wheel can be fully customized with bore size, bearing arrangement, and key-way dimensions as per your exact technical requirements.
If you are looking for reliable and precision-engineered polyurethane wheel solutions for your application, contact us with your drawing or specification — our team specializes in developing customized wheels tailored to your operational needs.
