Technical Specification
01. Wheel Size : 63 X 10 X 22
02. Insert : Aluminium
03. Coating : Polyurethane
04. Coating Hardness : 95, A
05. Coating Color : Natural, RED or As per Requirement
06. Wheel OD : 63mm
07. Wheel Width : 10mm
08. Bore Size : 6 mm or As Per required
09. Bearing Size : Not Applicable
10. Key-Way Size : Not Applicable
11. Color : Sliver / Natural
12. Load Capacity : Not Applicable

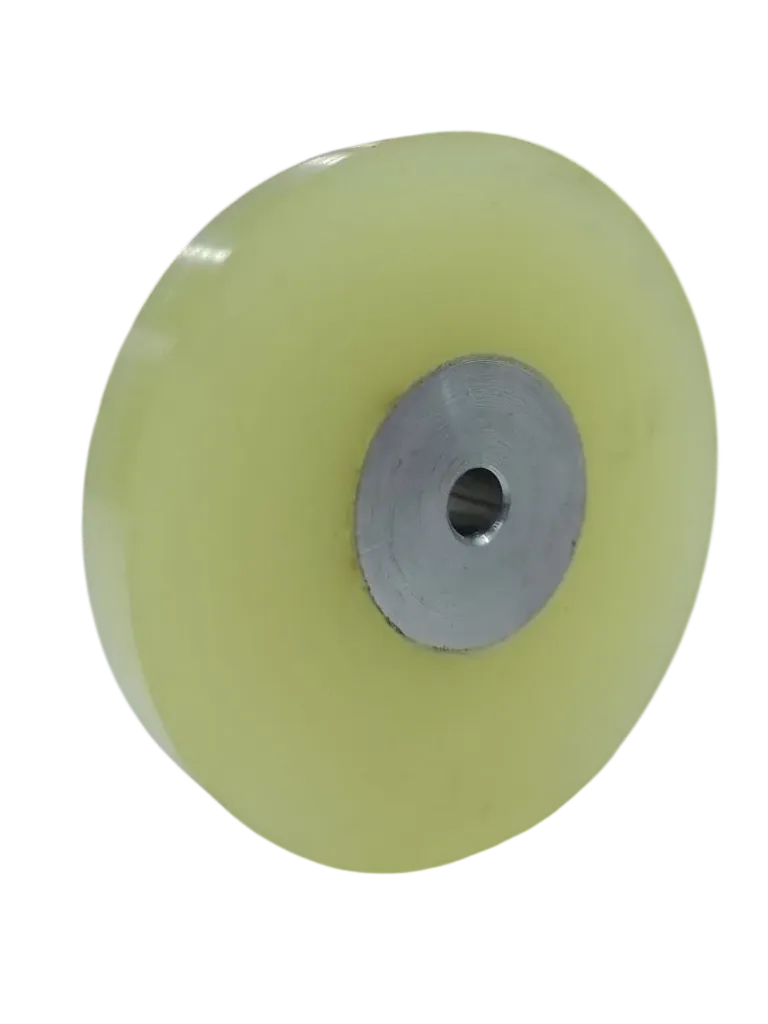

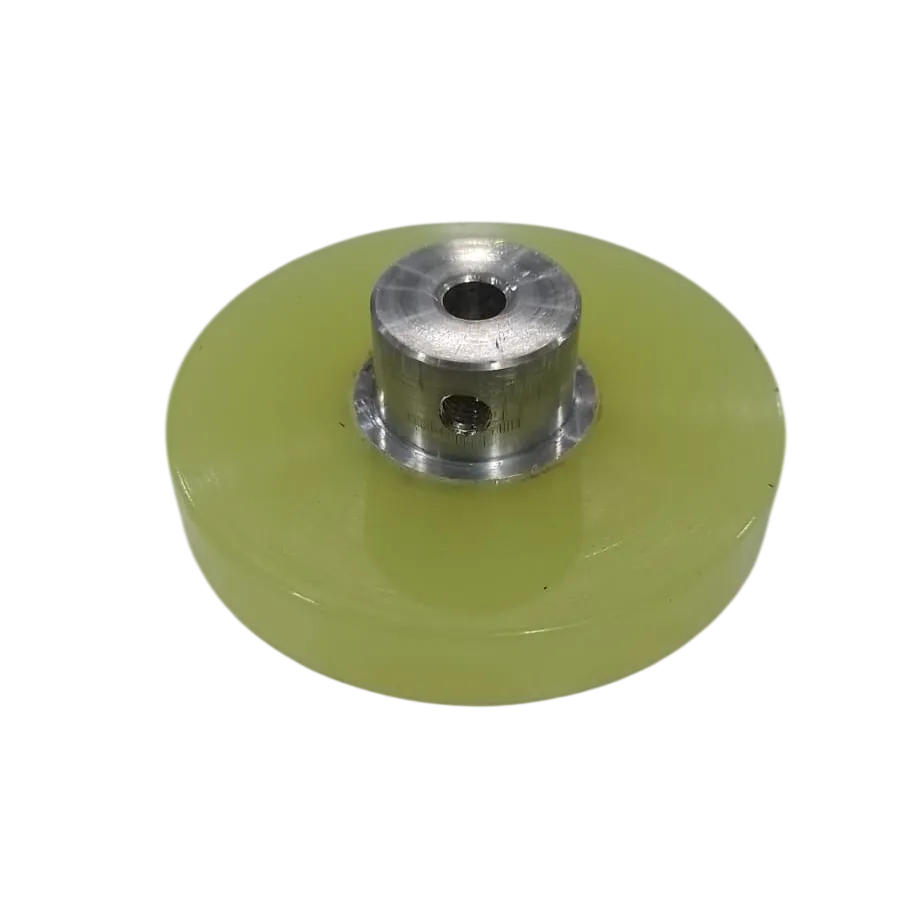

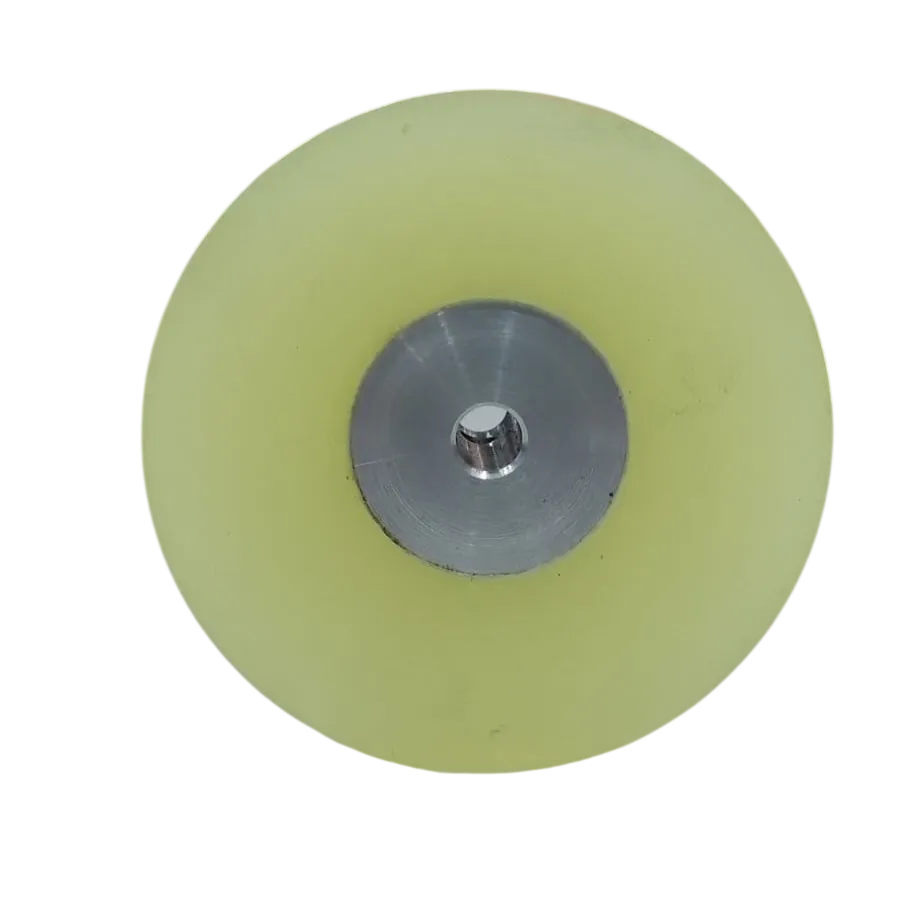

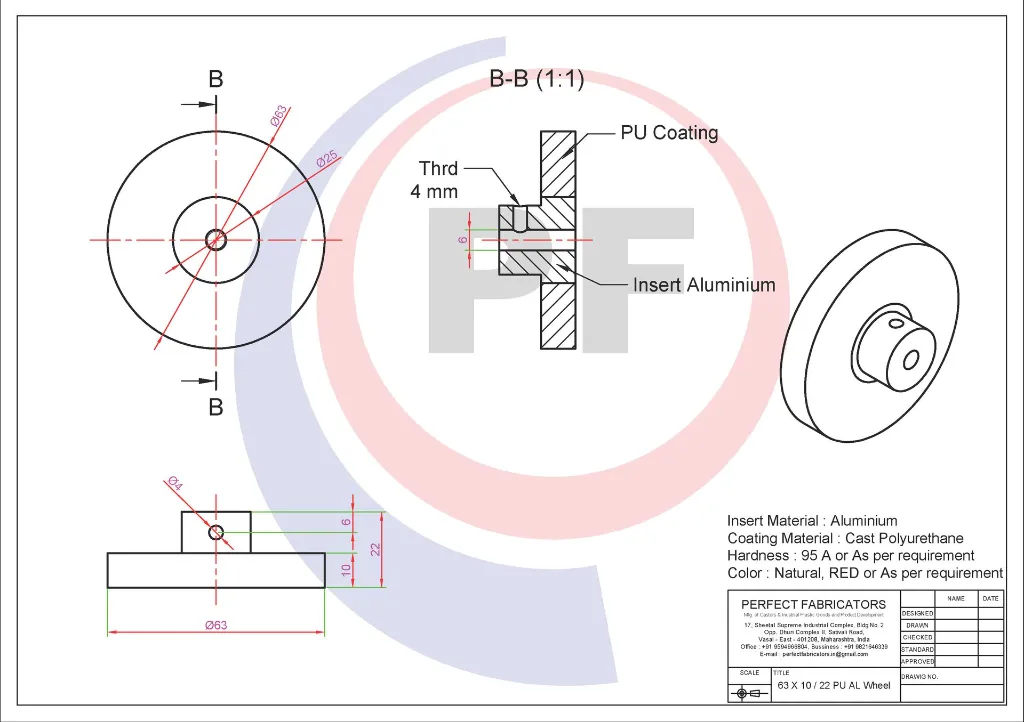

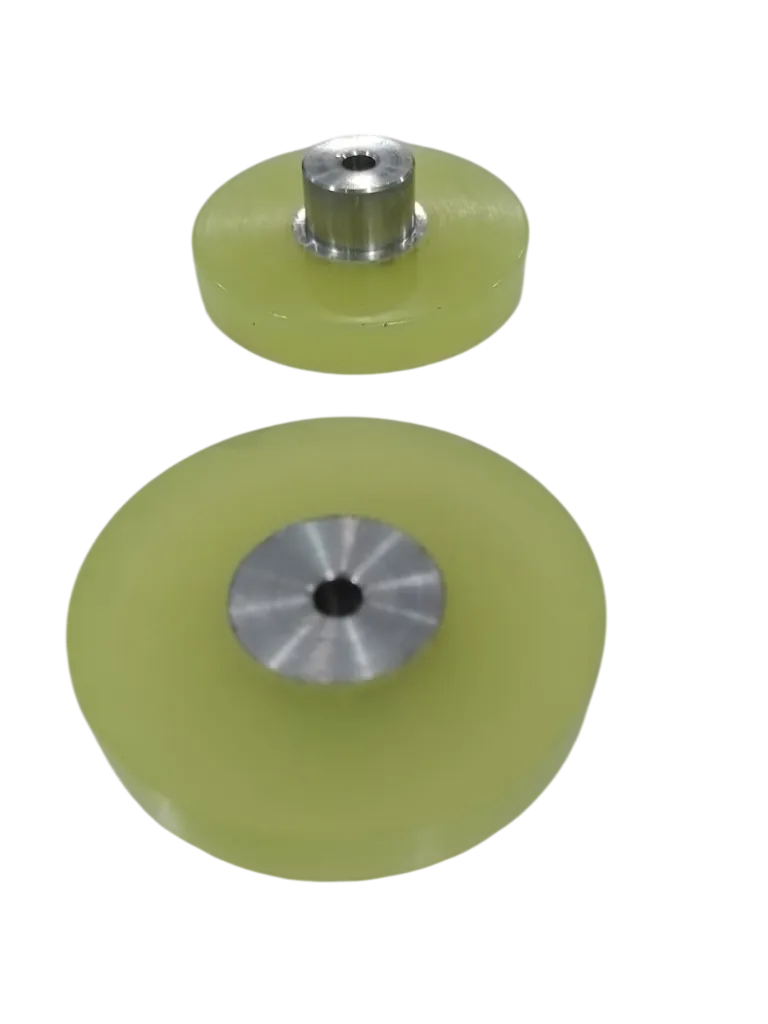

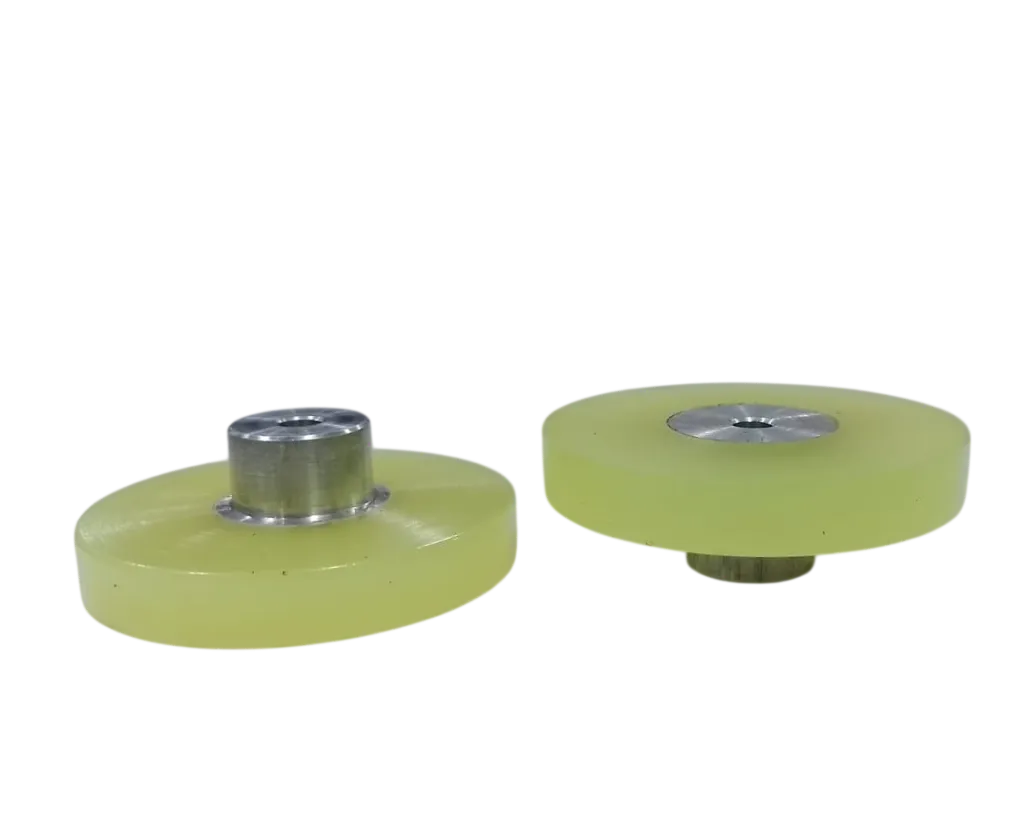

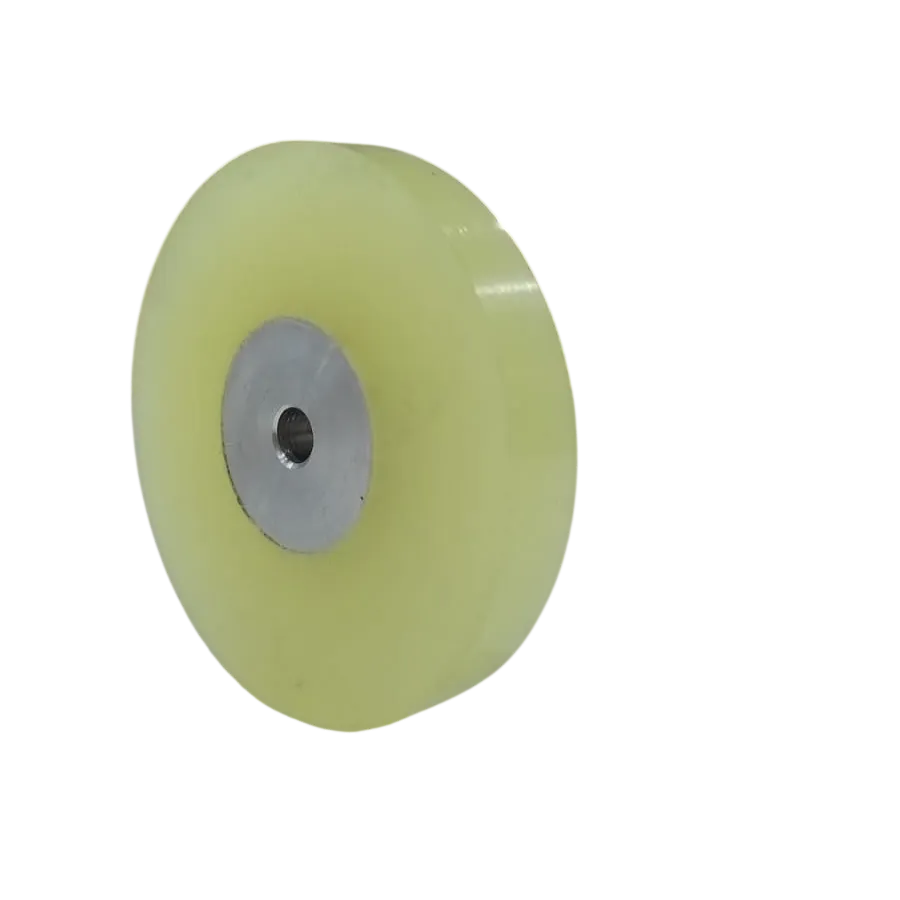

Engineered and successfully developed as a fully customized solution based on customer-provided technical drawings and specifications, this PU/AL Wheel 63×10/22 features a precision-coated aluminium insert with high-performance cast polyurethane for superior durability, smooth operation, and reliable industrial performance.
We specialize in developing custom polyurethane wheel solutions tailored to your exact application requirements. Share your technical drawing or sample with us for precision-engineered products designed to meet your performance expectations.
